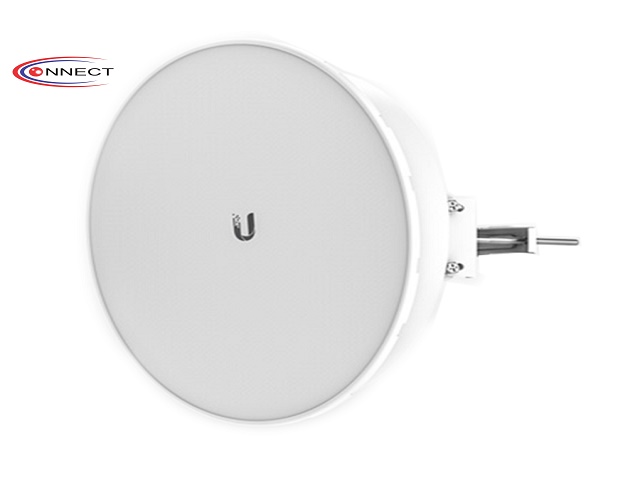

| Nama Produk | : | PowerBeam ac ISO (PBE-5AC-400-ISO) |
| Kode Produk | : | 00343 |
| Harga | : |
Specifications PBE-5AC-400-ISO
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 16 MB Flash |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Dimensions | 459 x 459 x 261 mm (18.07 x 18.07 x 10.28") |
| Weight | 3.22 kg (7.10 lb) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported voltage Range | 20-26VDC |
| Max. Power Consumption | 8.5W |
| Gain | 25 dBi |
|
Operating Frequency Worldwide USA |
5170 - 5875 MHz 5725 - 5850 MHz |
| Wind Loading | 390 N @ 200 km/h (88 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
|
Channel Sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount Kit Included |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
TX Power Specs
| Data Rate | Avg. TX | Tolerance |
|---|---|---|
| 1x BPSK (½) | 25 dBm | ± 2 dB |
| 2x QPSK (½) | 25 dBm | ± 2 dB |
| 2x QPSK (¾) | 25 dBm | ± 2 dB |
| 4x 16QAM (½) | 25 dBm | ± 2 dB |
| 4x 16QAM (¾) | 25 dBm | ± 2 dB |
| 6x 64QAM (2/3) | 25 dBm | ± 2 dB |
| 6x 64QAM (¾) | 24 dBm | ± 2 dB |
| 6x 64QAM (5/6) | 23 dBm | ± 2 dB |
| 8x 256QAM (¾) | 21 dBm | ± 2 dB |
| 8x 256QAM (5/6) | 21 dBm | ± 2 dB |
